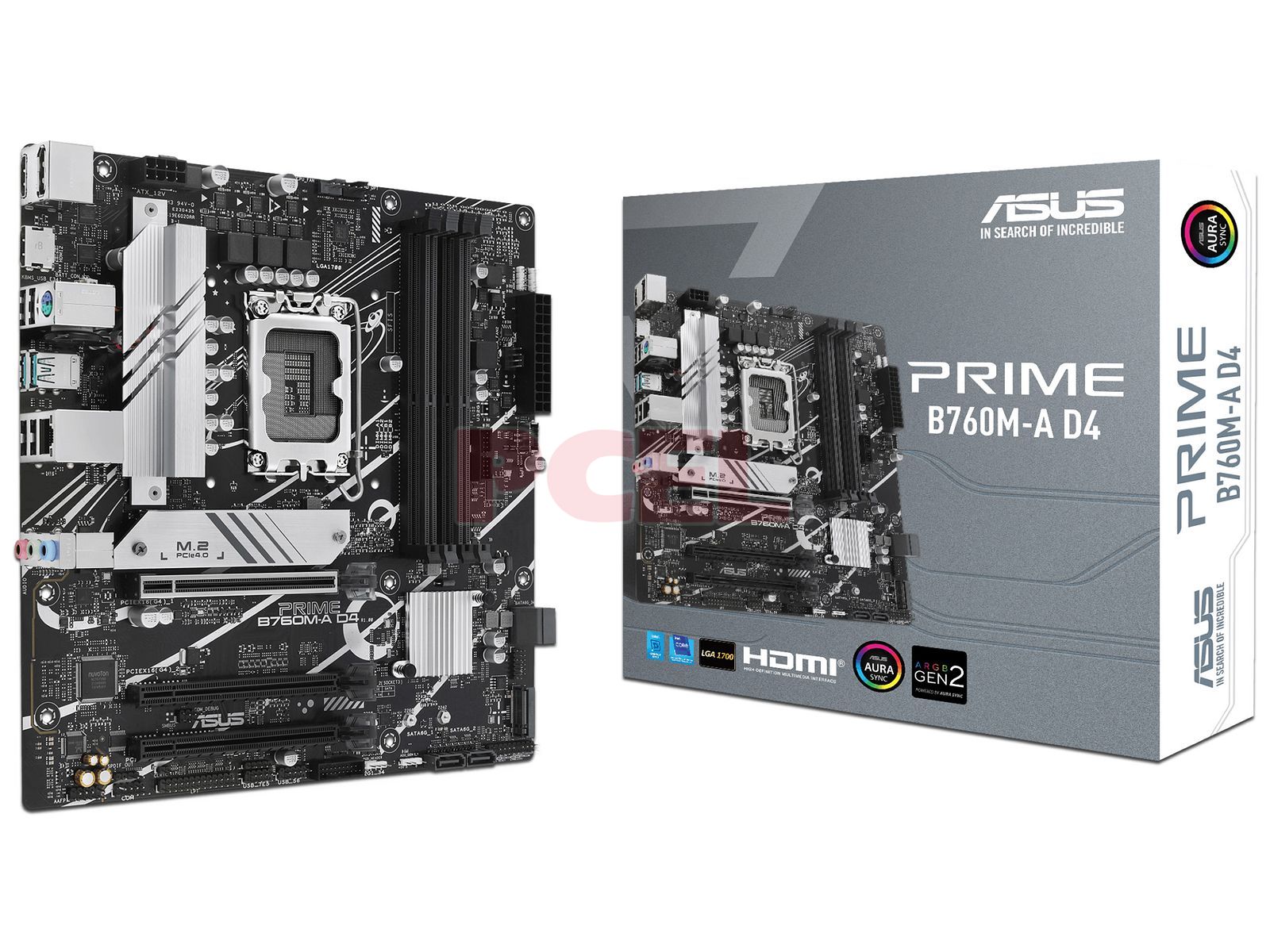

ASUS B760 PRIME B760M-A D4

La placa base ASUS PRIME B760M-A D4 diseñada para procesadores híbridos Intel Core de 12ª y 13ª generación es ideal para montar un sistema potente y versátil. Las placas base ASUS Prime están diseñadas y fabricadas para usuarios exigentes que buscan un rendimiento constante y fiabilidad a largo plazo. Aprovechan al máximo sus componentes con un diseño único hecho de materiales robustos y utilidades exclusivas. Incorporan funciones profesionales y combinan las ventajas de los nuevos procesadores Intel con el diseño y las características icónicas de ASUS.

Características:

• Compatibilidad con los procesadores Intel Core de 12ª y 13ª generación en el zócalo LGA 1700
• Compatible con memoria DDR4, hasta 5333 MHz (OC)
• 2 ranuras M.2 PCIe 4.0 + 4 puertos SATA 6 Gbps
• Ranura PCI-Express 4.0 16x
• ASUS 5X PROTECTION III con DIGI+ VRM, LANGuard, Protección contra sobretensión
• LAN de 2,5 GbE
• Sincronización Aura y compatibilidad con ventilador ARGB
• Formato Micro ATX

Especificaciones

• CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® B760 Chipset
• Memory
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Graphics
  • 1 x DisplayPort**
  • 2 x HDMI® ports***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • ***Supports 4K@60Hz as specified in HDMI® 2.1.
• Expansion Slots
  • Intel® 13th & 12th Gen Processors
  • 1 x PCIe 4.0 x16 slot
  • Intel® B760 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)
  • Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
• USB
  • Rear USB (Total 6 ports)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 10 ports)
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 2 x HDMI® ports
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
• Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot Core+
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - Q-DIMM
  • - Q-LED Core
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - ProCool
  • Aura Sync
  • - Aura RGB header
  • - Addressable Gen 2 RGB headers
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 2+
  • - Power Saving
  • AI Suite 3
  • - Digi+ VRM
  • - PC Cleaner
  • ASUS CPU-Z
  • Norton Deluxe (60 Days Free Trial)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 1 x M.2 SSD screw package
• Documentation
  • 1 x User guide
• Operating System
  • Windows® 11, Windows® 10 64-bit
• Form Factor
  • mATX Form Factor
  • 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
